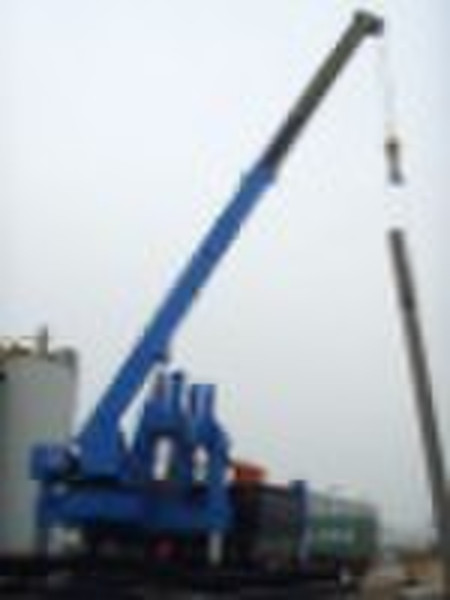

ZYC80 to ZYC1200 hydraulic static pile driver

Features:No noise,no vibration,no pollution, no rubbilish left on the jobsite; Parts for the machinery: Main body, movement mechanism,piling mechanism,counterweight beam, counterweight,spare parts kit etc; Suitable condition: clay,soft soil,sand layer,etc; noise regulated urban area; vibration area such as the old building,subway,overpass,etc Advantage: 1) we can produce nearly 40 types of the pile driver from 80T-1200T to meet the need of the customers.each pile driver has the function of side piling and corner piling. top-pressingis avaiable. 2) Two patents in chinathe first one is ZL01249443.7,inverting cylinder as a supporting leg so as to avoid the easy breakage of cylinder which was the case with traditional design. The second one is ZL02139875.5,using the 16 cylinder clamping mechanism with multi-touching points to protect the piles from damage with clamping force . 3) Structure design .adopt variable hydraulic systems with low loss and constant power in this series ,apply merging hydraulic systems in the main part so as to save 30% energy consumption; .use big power and great flow,and the pile driving mechanism with multi-speed operation to ensure the high efficiency of the while machine; .card board connection between horizontal movement mechanism and main machine body make it easy dismantled and installed; 4) Corner piling technologydirectly move the center pile driving device to the corner piling position,add on some countweight ,so its pressure can be reach to 60%-70% of center piling driving force. This structure of corner piling device wont deform,and with the same style for the center piling,it needt extra clamp. parameters: paramete / typeZYC120B-BZYC180B-BZYC240B-BZYC320B-BZYC400B-BZYC500B-BZYC600B-Brated piling pressure(KN)1200180024003200400050006000piling speed(m/min)fast10.011.07.77.18.68.64.2low3.02.71.81.91.71.41.02piling stroke(m)1.61.82.01.91.91.91.9pace(m)longitudinal1.62.43.33.63.63.63.6horizontal0.50.60.60.70.70.70.7angle range(°)15151511111111rise stroke (m)0.81.01.01.01.11.21.2square pile(mm)max350400400400550550550min…………………cirle pile(mm)max300400500600600600600min…………………side piling space(mm)7209509501250125012501250cirle piling space(mm)1500190019002500250025002500lifting weight(t)8.08.012.012.012.016.016.0lifting pile's lengh(m)12.012.014.014.014.015.015.0power(KW)piling37606074111111111lifting22223030303030main dimension(m)lenth of work9.4510.311.312.513.013.513.5width of work5.205.906.307.007.007.458.08transprorting height2.902.903.003.003.053.13.15total weight(T)≥120180240320400500600
