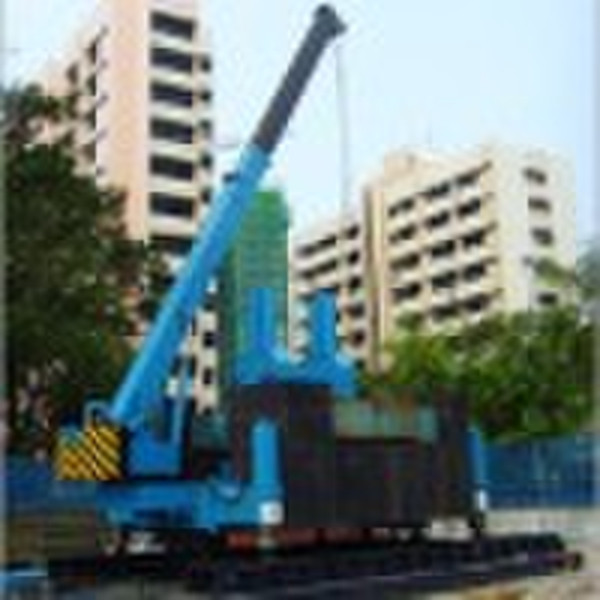

ZYC500 Tons Hydraulic Static Pile Driver

Tianwei produces the most cost-effective Hydraulic Static Pile Drivers from 60-1200 Tons. We have beenmanufacturing anddevelopingthe machine for more than 10 years. Its qualityis well recognized by customers both at home and abroad. It could be customized with/without sidepiling mechanism(ZYC500B-B/ZYC500B), with/without top-pressing mechanism(ZYC500BD-B/ZYC500B-B),etc. Pleasecontact us for more information PARAMETERS OF ZYC500 Parameter /TypeZYC500rated piling pressure(KN)5000piling speed(m/min)fast8.5low1.2piling stroke(m)1.9 pace (m)longitudinal3.6horizontal0.7angle range (o)11rise stroke (m)1.1square pile(mm)min…max450/550circle pile(mm)min…maxΦ600side pilingspace (mm)1250corner piling space (mm)2600lifting weight (T)16lifting pile's length(m)15power (KW)piling111lifting30lengthof work13.2width of work7.6main dimension (m)transporting height3.15total weight (T) ≥500
