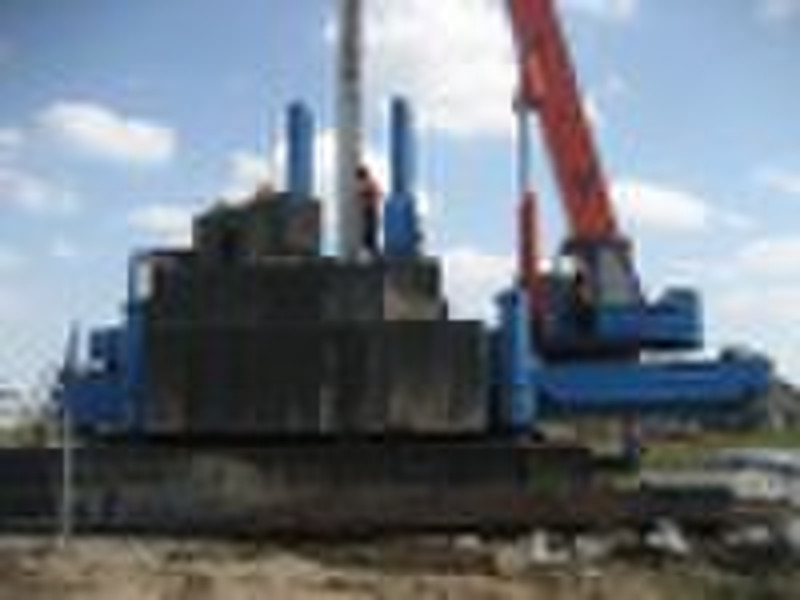

static pile driver

Static Pile Driver ZYC320B-BSpecification1. Capacity of Pile Driving1.1When two principle pile driving cylinder are working:1.1a At the fast speed position Maximum pile driving force:819KN Speed of pile driving:7.1m/min1.1b At the normal speed positionMax pile driving force: 1600KN Speed of pile driving: 3.7m/min1.2 When two principle cylinders and two auxiliary cylinders are working: Max pile driving force: 3200KN Speed of pile driving(slow speed): 1.85m/min1.3 Depth of pile driving Max depth of each pile driving:1.9m2. Moving Capacity2.1 Distance of each movement longitudinal: 3.6mhorizontal: 0.7mturning angle: 15.502.2 speed of movingforward:7m/min backward:13.4m/min left:7m/minright:13.4m/min2.3 Distance of Ascending and Descending:1.0m2.4 Size of Piles circle pile:max ø600mm square pile: max500x500mm length of single pile:a)≥2.5 m,≤14 middle pile b)≥2.5 m,≤9 m side pile2.5 Hydraulic Systemrate pressure: 22(20) MParate flow: 351(104) L/min2.6 Electrical System rate horsepower: 37X2+30X1=104 kw rate voltage:380 Vrate current:70.4X2+56.8=197.6A frequency:50 Hz input cable:YCW-3×70+2×162.7 WeightTotalweight: 320theaviest component: 32t2.8Dimensions when working L×W×H=12.7×7.0×16.0m2.9Distance of Side Piles to the Building: 1.25m2.10 Pressure on Land long boat:102KN/m2 short boat: 112KN/m22.11 Crane max lifting weight:12t max speed of ascending:11m/min max rotating speed:3 r/min
