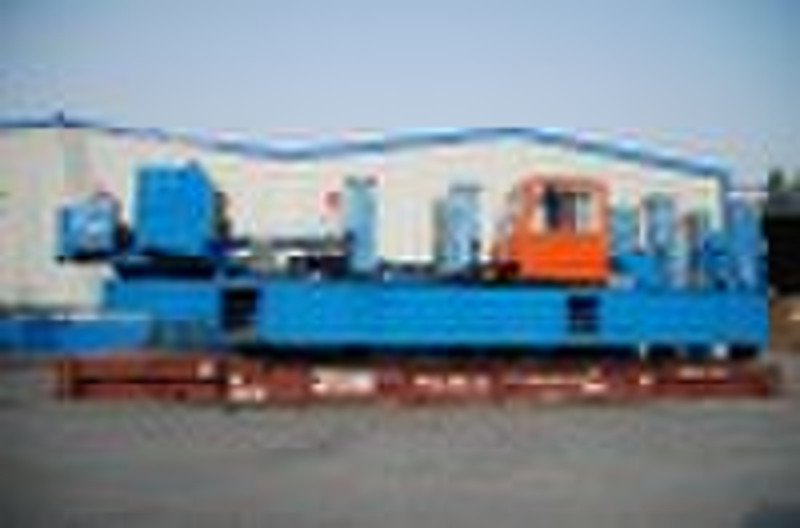

pile driver

PILE DRIVER ZYC420B-B1. Technical Data Contents ParemetersMeas. Min. working size: L x W=13m x 7.2m Largest Part Transport Min. weight: 35tMin. Dimensions in transport: L x W x H=11.1 x3.3 x3.1m Long Boat Pressure on ground: 123KN/ M2 Dimensions: L=11.8m W=1.35m Pace =3.6m Short Boat Pressure on ground:131KN/M2 Dimensions: L=4.5m W=3.4m Pace =0.6m Piling Capacity 1st Gear:1000KN 2nd Gear:2100KN 3rd Gear: 4200KN Piling Stroke:1.9m Piling Speed 1st Gear:8.6m/min 2nd Gear:3.3m/min 3rd Gear:1.7m/min Power Power of electromotor:3X37+30KW=141KWHydraulic flow:591.5L/minMax working hydraulic pressure:25MPa Crane Capacity: 12T max length 14m pile lifting Weight Total weight:400t Main Machine: 145t Counterweight:255t=127.2 tons F-shape (Frecommend cast-iron) +127.8 tons square type (can be made of reinforced concrete) For Piles-Type Circle Piles: Length≥2.0m Dia.≤600mm Square Pile: Length≥2.0m Side length≤450 mm 2.Specifications Cylinders Main piling cylinder:250/180-1900; assistant piling cylinder:250/180-1900; Clamping cylinder:320/250-50; Supporting leg cylinder:320/220-1100; Long boat cylinder:180/125-3600; Short boat cylinder:180/125-700 Side Piling Mechanism Side piling space:1.25m Corner piling space:2.6m Power System Oil pump: Use three units of A7V107 plunger pumps produced by Germany Rexroth Technology Clamping Mechanism Clamping box uses 8 or 16 clamping cylinders
