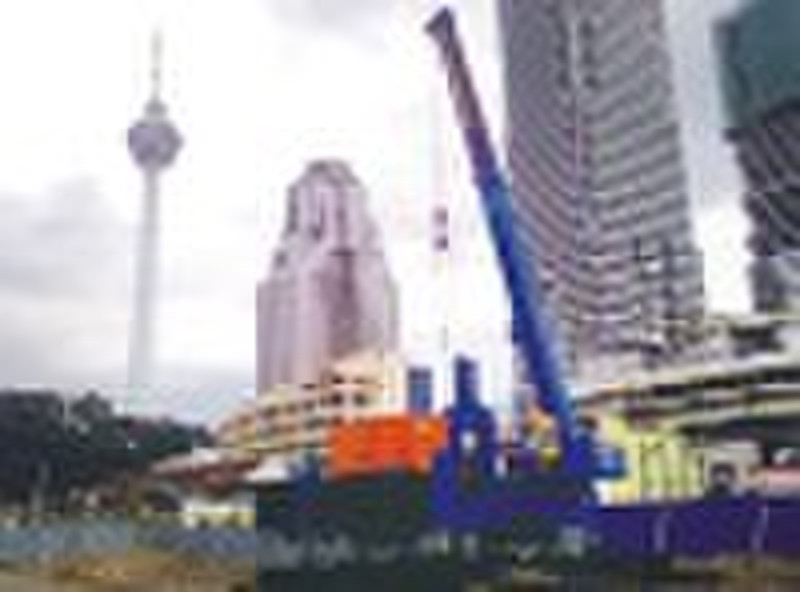

jack in machine

Piling MachineZYC600B-B 1. Technical Data Contents ParemetersMeas. Min. working size: L x W=13.5m x 8.08m Largest Part Transport Min. weight: 57tMin. Dimensions in transport: L x W x H=13.5 x3.4 x3.25m Long Boat Pressure on ground: 136KN/ M2 Dimensions: L=13m W=1.7m Pace =3.6m Short Boat Pressure on ground:166KN/M2 Dimensions: L=5.3m W=3.4m Pace =0.7m Piling Capacity 1st Gear:1500KN 2nd Gear:3000KN 3rd Gear:6000KN Piling Stroke:1.9m Piling Speed 1st Gear:4.2m/min 2nd Gear:1.54m/min 3rd Gear:1.02m/min Power Power of electromotor:3X37+30KW=141KW Hydraulic flow:472L/min Max working hydraulic pressure:25MPa Crane Capacity: 16T, max 15m pile lifting Weight Total weight:600t Main Machine: 184t Counterweight:255t=187.6 tons F-shape (Frecommend cast-iron)+228.4 tons square type (can be made of reinforced concrete) For Piles-Type Circle Piles: Length≥2.0m Dia.≤600mm Square Pile: Length≥2.0m Side length≤450/550 mm 2. Specifications Cylinders Main piling cylinder:280/200-1900; assistant piling cylinder:280/200-1900; Clamping cylinder:260/180-30 or 340/220-50; Supporting leg cylinder:360/250-1100; Long boat cylinder:200/125-3600; Short boat cylinder:200/125-700 Side Piling Mechanism Side piling space:1.3m Corner piling space:2.6m Power System Oil pump: Usefour units of A7V107 plunger pumps produced by Germany Rexroth Technology Clamping Mechanism Clamping box uses 8 or 16 clamping cylinders
