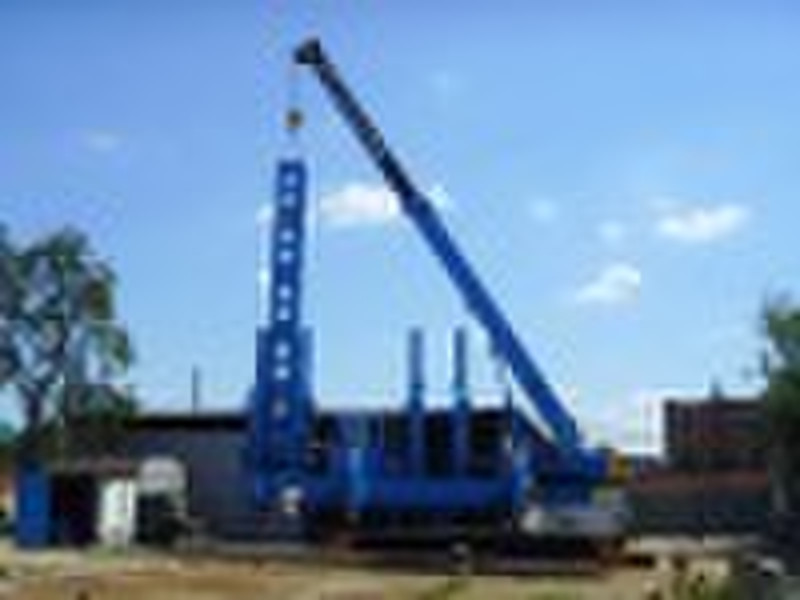

hydrostatic pile driver

ZYC240BD-B Hydraulic Static Pile Driver Specifications1. Capacity of Pile Driving Max. speed of pile driving: 7.8m/min Min. speed of pile driving:1.8m/min Max. pile driving force: 2400KN2. Depth of pile driving Max. depth of each pile driving: 2.0m3. Moving Capacity Distance of each movement: longitudinal=3.3m; horizontal=0.6m each turning angle=150 4. Distance of Ascending and Descending: 1.0m 5. Size of Piles: for circularmaxø400mm; for square max 400×400mm length of single pile a) ≥2.5 m,≤14 m (middle pile); b) ≥2.5 m,≤12 m (side pile) 6. Hydraulic System rated pressure: 24MPa 7. Electrical System rated power: 74 kw 8. Distance of Side Piles to the Building: 0.9m 9. Pressure on Land Longitudinal movement mechanism: 91KN/m2 Horizontal movement mechanism: 143KN/m2 10. Crane maximum lifting weight: 12t
