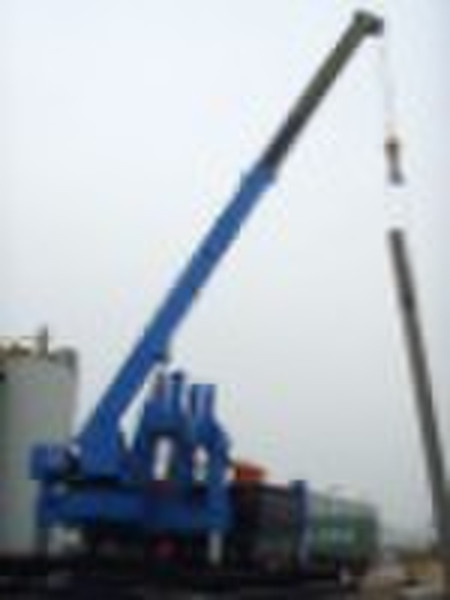

hydraulic static pile driver

HYDRAULIC STATIC PILE DRIVER ZYC900B 1. Technical Data Contents ParemetersMeas. Min. working size: L x W=14m x 8.42m Largest Part Transport Min. weight: 50tMin. Dimensions in transport: L x W x H=12 x3.4 x3.25m Long Boat Pressure on ground: 143KN/ M2 Dimensions: L=14m W=2m Pace =3.6m Short Boat Pressure on ground:196KN/M2 Dimensions: L=6.0m W=3.4m Pace =0.7m Piling Capacity 1st Gear:2300KN 2nd Gear:5180KN3rd Gear:8000KN Piling Stroke:1.9m Piling Speed 1st Gear:3.08m/min 2nd Gear:1.54m/min 3rd Gear:1.02m/min Power Power of electromotor:3X37+37KW=148KW Hydraulic flow:592L/min Max working hydraulic pressure:25MPa Crane Capacity: 25T, max 15m pile lifting Weight Total weight:900t Main Machine: 190t For Piles-Type Circle Piles: Length≥2.0m Dia.≤800mm Square Pile: Length≥2.0m Side length≤600 mm 2. Specifications Cylinders Dia. Main piling cylinder:280/200-1900; assistant piling cylinder:280/200-1900; Clamping cylinder:280/200-30; Supporting leg cylinder:380/250-1100; Long boat cylinder:200/125-3600; Short boat cylinder:200/125-700; Crane amplitude cylinder:200/125-1650 Side Piling Mechanism no Power System Oil pump: Usefour units of A7V107 plunger pumps produced by Germany Rexroth Technology Clamping Mechanism Clamping box uses 16 clamping cylinders
