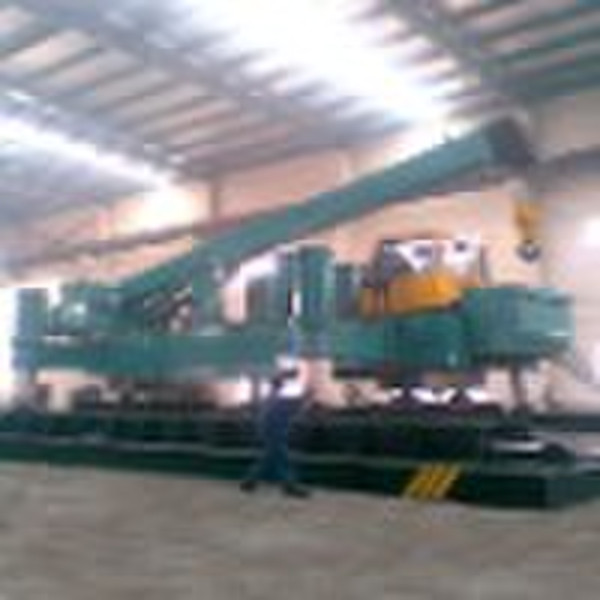

1000T hydraulic static pile driver

Parts for the machinery: Main body, movement mechanism,piling mechanism,counterweight beam, counterweight,spare parts kit etc; Suitable condition: clay,soft soil,sand layer,etc; noise regulated urban area; vibration area such as the old building,subway,overpass,etc Advantage: 1) we can produce nearly 40 types of the pile driver from 80T-1200T to meet the need of the customers.each pile driver has the function of side piling and corner piling.we also can design it with enbracing pile drivers and top-pressing pile drivers; 2) Two patents in chinathe first one is ZL01249443.7,inverting cylinder as a supporting leg so as to avoid the easy breakage of cylinder which was the case with traditional design. The second one is ZL02139875.5,using the 16 cylinder clamping mechanism with multi-touching points to protect the piles from damage with clamping force . 3) Structure design .adopt variable hydraulic systems with low loss and constant power in this series ,apply merging hydraulic systems in the main part so as to save 30% energy consumption; .use big power and great flow,and the pile driving mechanism with multi-speed operation to ensure the high efficiency of the while machine; .card board connection between horizontal movement mechanism and main machine body make it easy dismantled and installed; 4) Corner piling technologydirectly move the center pile driving device to the corner piling position,add on some countweight ,so its pressure can be reach to 60%-70% of center piling driving force. This structure of corner piling device wont deform,and with the same style for the center piling,it needt extra clamp. the parameters are as below: paramete / typeZYC1000B-Brated piling pressure(KN)10000piling speed(m/min)fast7.2low1.06piling stroke(m)1.90pace(m)longitudinal3.60horizontal0.70angle range(°)8rise stroke (m)1.2square pile(mm)maxapplicable for Φ800 circle pile, 600x600 square pile, H-shape steel pile or other special pile mincirle pile(mm)maxminside piling space(mm)1600cirle piling space(mm)3200lifting weight(t)25.0lifting pile's lengh(m)15.0power(KW)piling141lifting37main dimension(m)lenth of work16width of work8.9transprorting height3.4total weight(T)≥1000
